Flat Bar Intermediate Post - 960mm x 11 Drill Holes - Satin

Flat Bar Intermediate Post - 960mm x 11 Drill Holes - Satin

SKU: SSP091-S6

Material: Satin 316 Stainless

$77.00 - $77.00
$77.00
$77.00 - $77.00
$77.00

per Piece (Incl. GST)

Stocked Item
Ships from Adelaide

Quantity (per Piece):

Description

A satin stainless steel  flat bar intermediate post, designed for use with stainless steel wire balustrade.

Ensure your wire balustrading is compliant by including an intermediate post every 1.5m.

Product Dimensions

Overall Height: 960mm.
Thickness of post: 10mm.
Width of post: 50mm
T-Plate: 65mm wide x 75mm long.
Diameter of holes: 8mm (11 holes spaced 80mm apart)

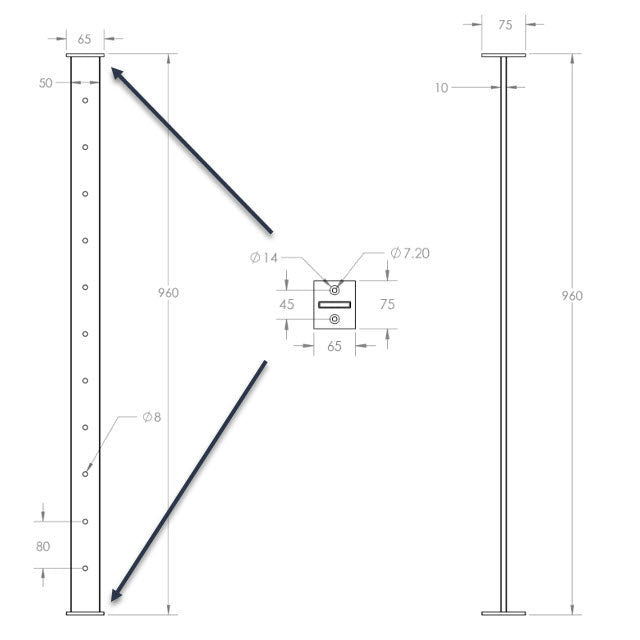

Please refer to the CAD drawing for more info on dimensions.

FAQs

Where would you normally use an intermediate balustrade post?

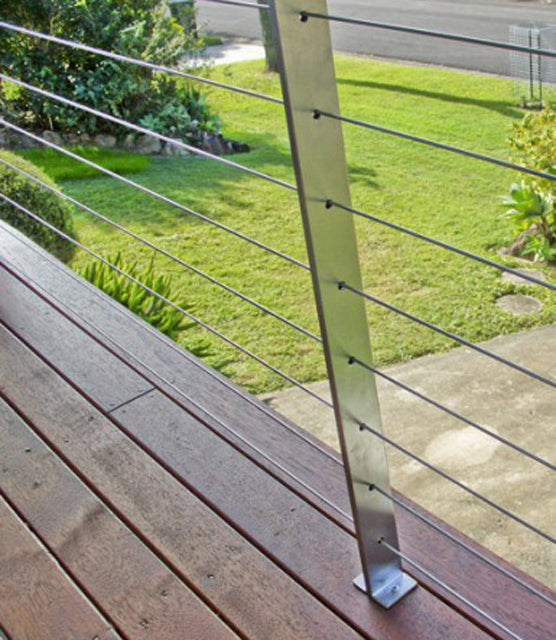

To support a wire cable balustrade on a deck or balcony.

On a wire balustrade, you need to have a support post approximately every 1.5 metres (when using 3.2mm wire cable).

The minimalist look of the intermediate post allows you to space your major posts every 3 metres, with the intermediate post going in-between.

The T plate at the top and bottom of the post is not able to be put on an angle, which means that this post can ONLY be used for flat (horizontal) balustrade.

What handrail can be used with this post?
Balustrade must be 1m in height (measured from the deck to top of handrail). This post is 960mm, so the handrail must be flat and be a minimum of 40mm thick and 65mm wide. (The flat plate on the top and bottom comes pre-drilled and is 65mm wide and 75mm long.)

Does it come pre-drilled?
Yes, there are 11 holes each of 8mm diameter. They are spaced 80mm apart so as to conform to regulations for wire cable balustrade.

What is it made out of?
316 grade satin stainless steel

How should you fasten it to the ground/deck?
Due to the large number of surfaces that the post could be fixed to, we do not supply any fasteners.
We suggest that you speak to a local hardware store for more info.

Cleaning & Maintenance

Without regular cleaning and maintenance discolouration of the surface of the stainless steel by corrosion (tea staining) can occur.

How to reduce the risk of tea staining

  • Absence of corrosives – especially salt, chlorine, cleaning acids etc.
  • Atmospheric Conditions – lower temperatures and low humidity are better.
  • Surface orientation – Open exposure to rain washing is better
  • Surface Finish – In general a smoother finish is better. where practical mirror polish finish may perform better than a brushed finish.
  • Chemical cleanliness or passivation of the surface improves corrosion resistance
  • Appropriate grade selection for conditions
  • Regular Maintenance to limit the accumulation of corrosives

Stainless steel cleaning schedule

The frequency of cleaning will vary depending on environmental factors i.e. proximity to the ocean, atmospheric and urban conditions. Below is intended as a guide and should be varied as required. We recommend using peek stainless steel polish for maintenance.

Environment Distance from Coastline Cleaning Schedule
Clean inland environment 20km + Every 10 - 12 Months
Moderate urban or coastal environment 1-5km Every 4 - 6 Months
Harsh urban or coastal environment < 500m Every 2 - 3 Months
Severe coastal/ marine environment < 500m Every 1 - 2 Weeks
