Stainless Wire Balustrading Kit MBC

Description

Where would you normally use Stainless Wire Balustrade Kit C ?
For hydraulically swaged 3.2mm cable balustrading between metal posts. (Not suitable for timber posts).
This kit can be used for both horizontal and angled (stair) balustrade.

What parts make up the kit ?

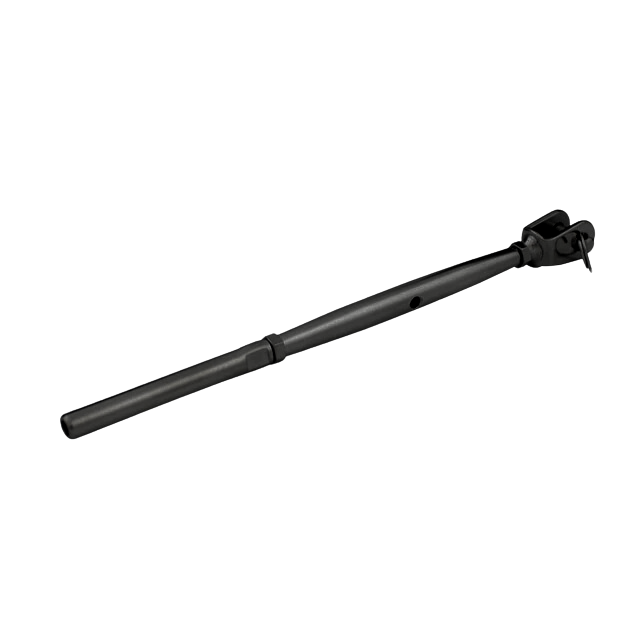

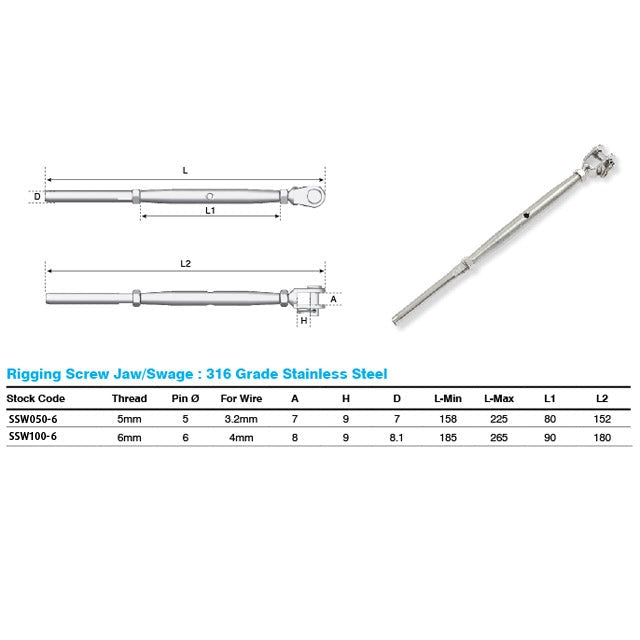

1 x SSW050XMB (Long Fork Bottle Screw)

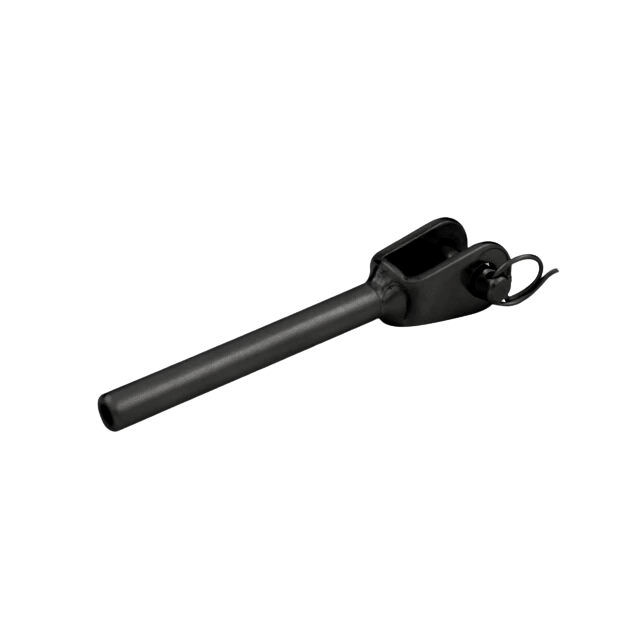

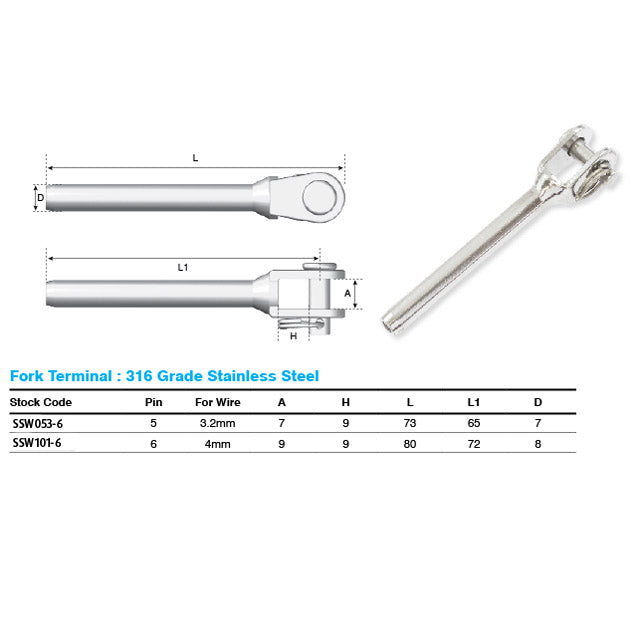

1 x SSW053XMB (Fork Terminal)

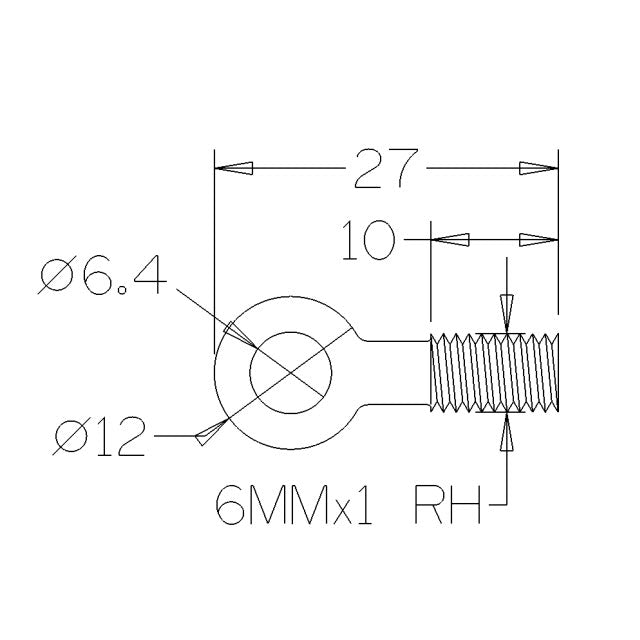

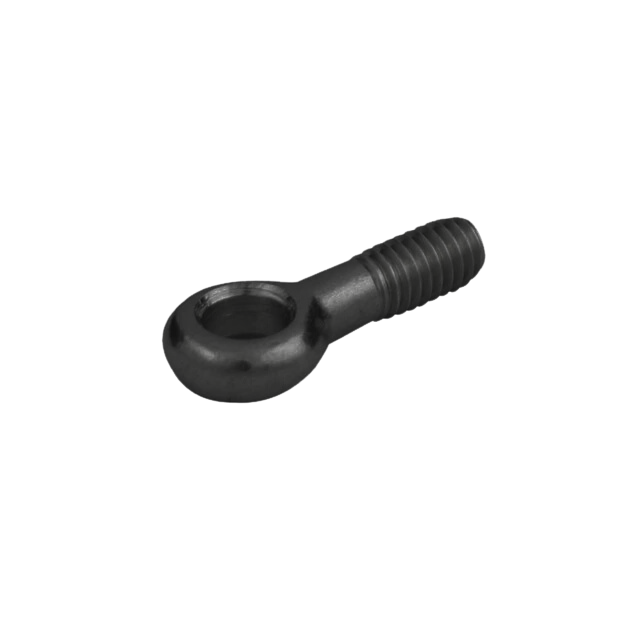

2 x SSW057XMB (Eye Bolt)

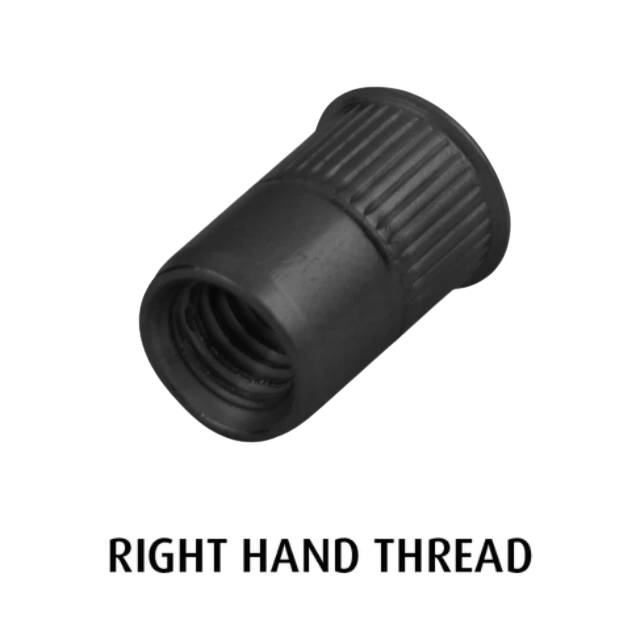

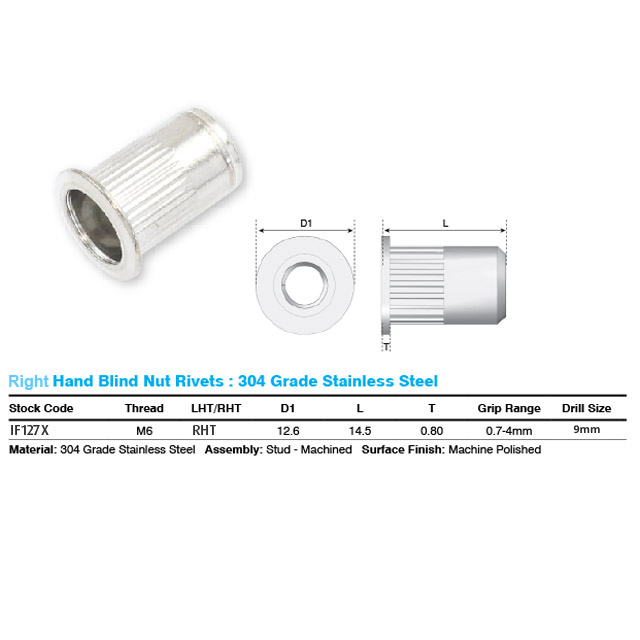

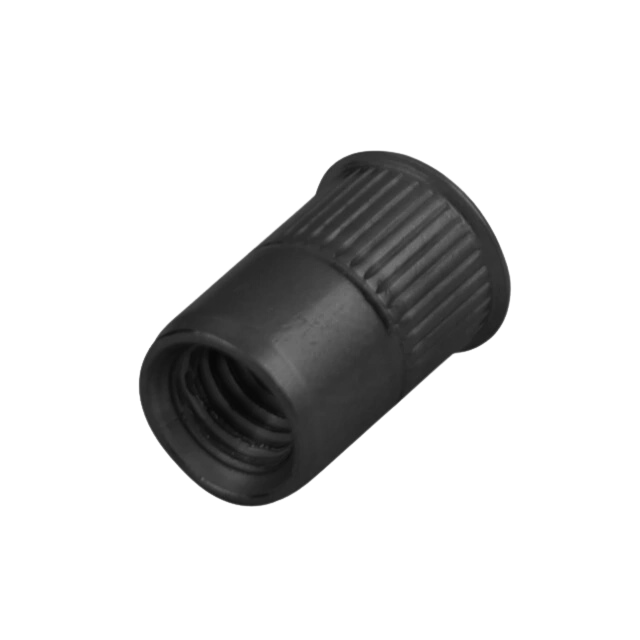

2 x IF127XMB (Rivet Nut RHT)

What are the fittings made out of ?
Black 316 Stainless Steel, which means they can be used both in external and internal application. It is not powder coated, and therefore will not chip when crimped.

Which wire cable rope is best suited ?
The fittings will work only with 3.2mm stainless wire cable rope.
1 x 19 configuration for the cable is the best fit, but 7 x 7 and 7 x 19 will also work.

Which tools do I need ?
The SSW050XMB (Bottle Screw) and SSW053XMB (Fork Terminal) require the use of the IF120X (Hydraulic Swager) to fasten the fitting to the wire.

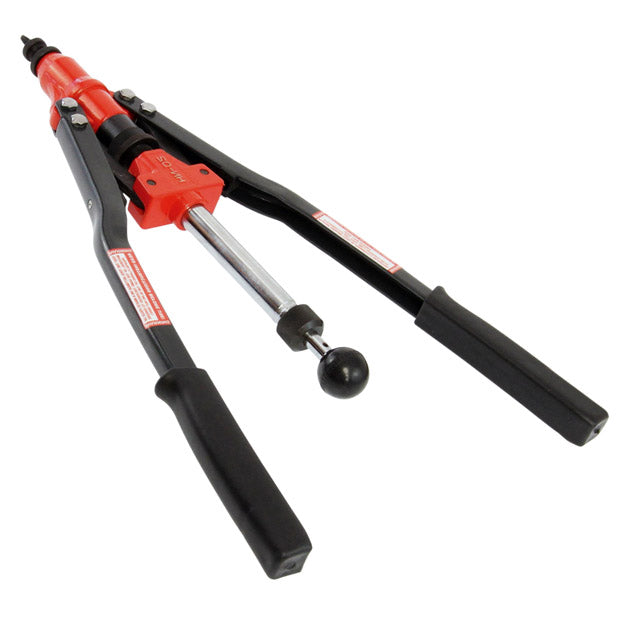

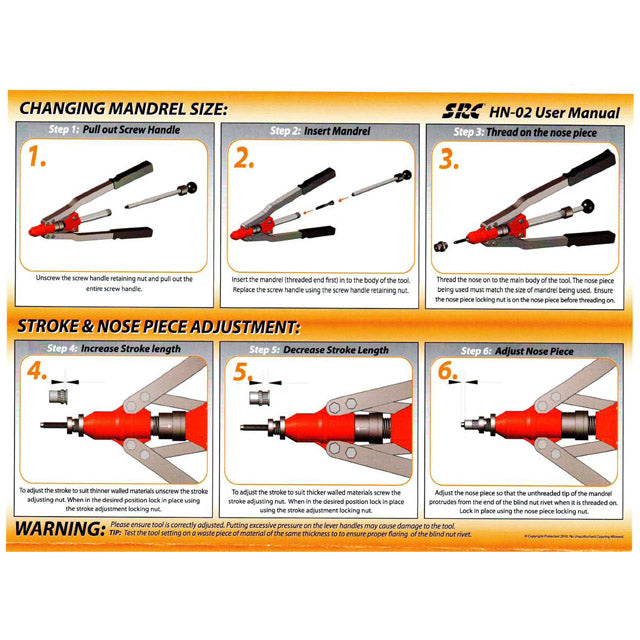

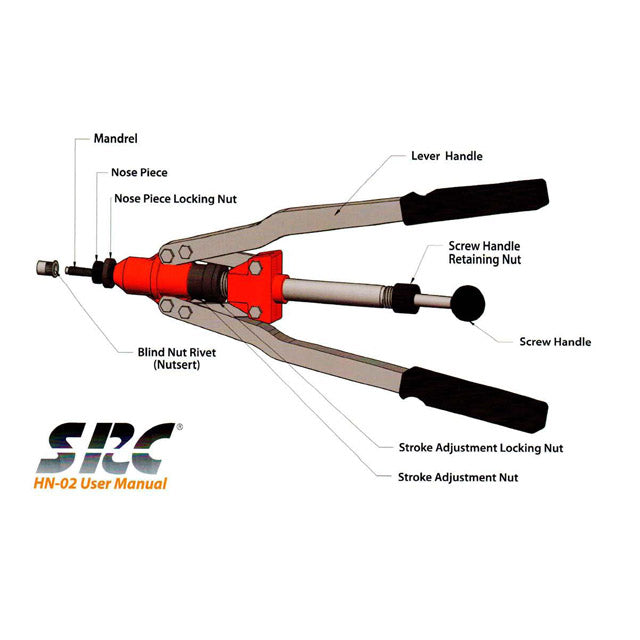

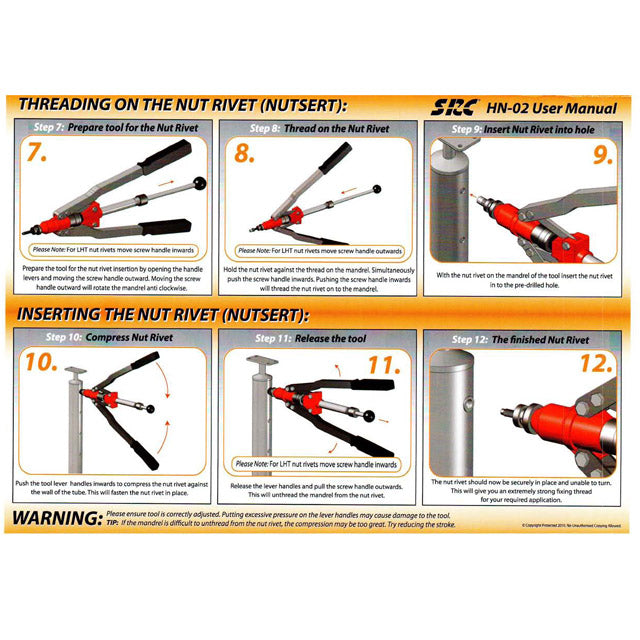

Other tools that will be handy to complete the job are IF122X (Wire Cutter), IF124X (Rivet Nut Inserter) and IF133X (Spanner Tensioner).

Do you have any instructions on how to install the kit ?
We sure do. Click on this link to download a PDF.
