Stainless Wire Balustrading Kit MBJ

Description

Where would you normally use the Stainless Wire Balustrade Kit J?
For hydraulically swaged 3.2mm cable balustrading between metal posts. (Not suitable for timber posts)
This kit can be used for a horizontal balustrade. (Not suitable for angled balustrade).

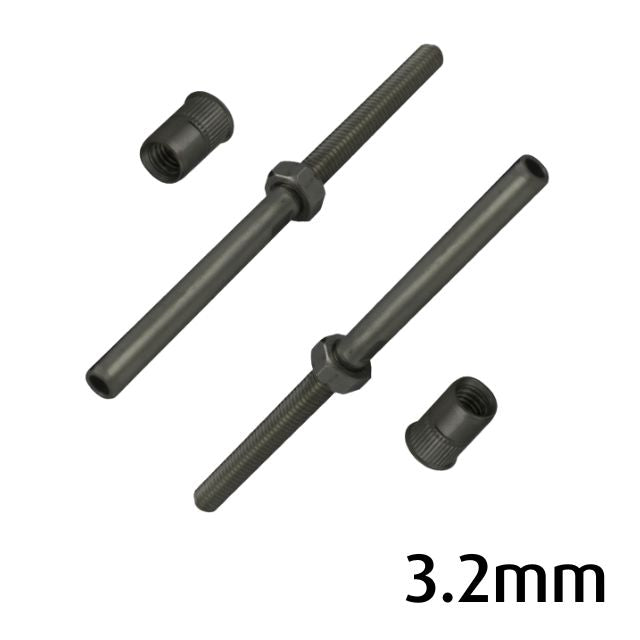

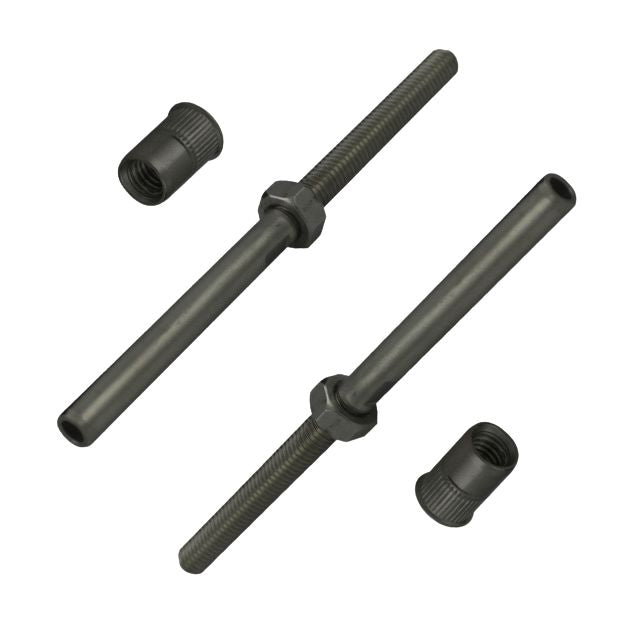

What parts make up the kit?
1 x SSW056XMB (M6 Terminal Right Hand Thread)
1 x SSW070XMB (M6 Terminal Left Hand Thread)
1 x IF127XMB (Rivet Nut Right Hand Thread)
1 x IF138XMB (Rivet Nut Left Hand Thread)

What are the fittings made out of?
316 Stainless Steel, which means they can be used both in external and internal applications.

Which wire cable rope is best suited?
The fittings will work only with 3.2mm stainless wire cable rope.
1 x 19 configuration for the cable is the best fit, but 7 x 7 and 7 x 19 will also work.

Which tools do I need?
The SSW056XMB (M6 Terminal Right Hand Thread) and SSW070XMB (M6 Terminal Left Hand Thread) require the use of the IF120X (Hydraulic Swager) to fasten the fitting to the wire.
Other tools that will be handy to complete the job are IF122X (Wire Cutter), IF124X (Rivet Nut Inserter) and two of the IF133X (Spanner Tensioner).

Do you have any instructions for installing the kit?
We sure do. Click on this link to download a PDF.
