Stainless Wire Balustrading Kit D

Description

Where would you normally use Stainless Wire Balustrade Kit D ?
For hand swaged 3.2mm cable balustrading between timber or metal posts.
This kit can be used for both horizontal and angled (stair) balustrade.

What parts make up the kit ?

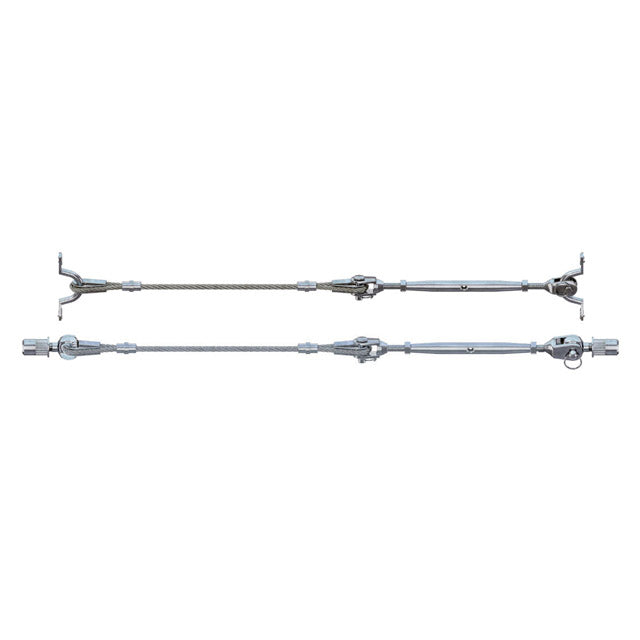

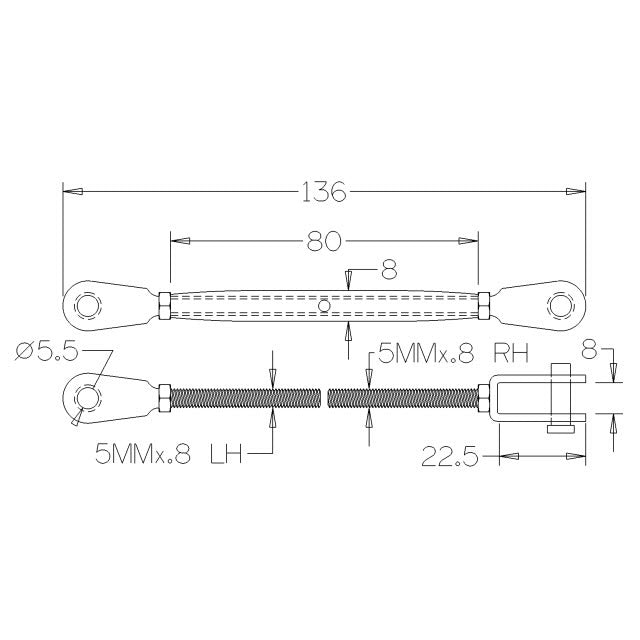

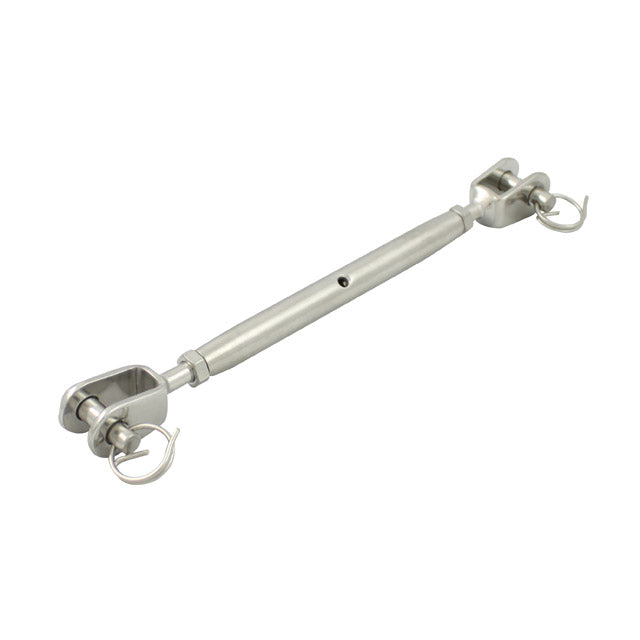

1 x SSW059-6 (Long Fork Bottle Screw)

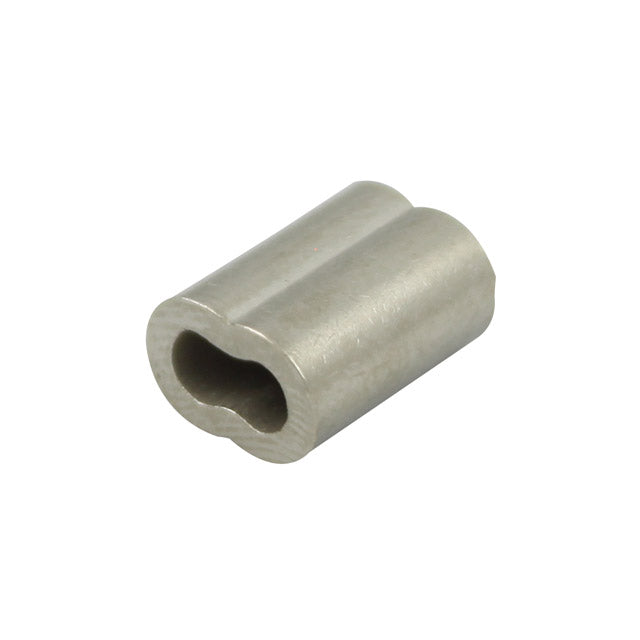

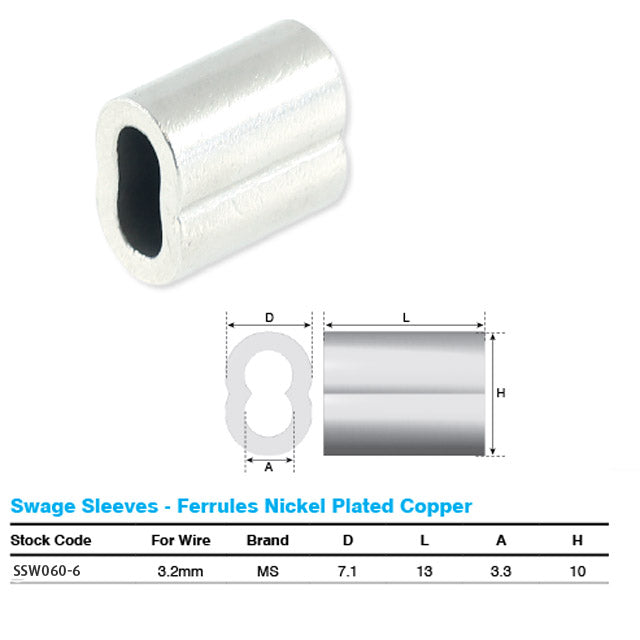

2 x SSW060-6 (Ferrule)

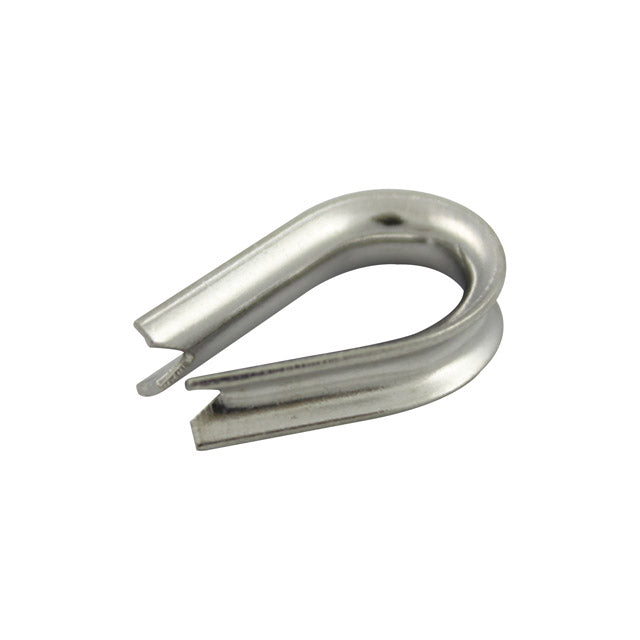

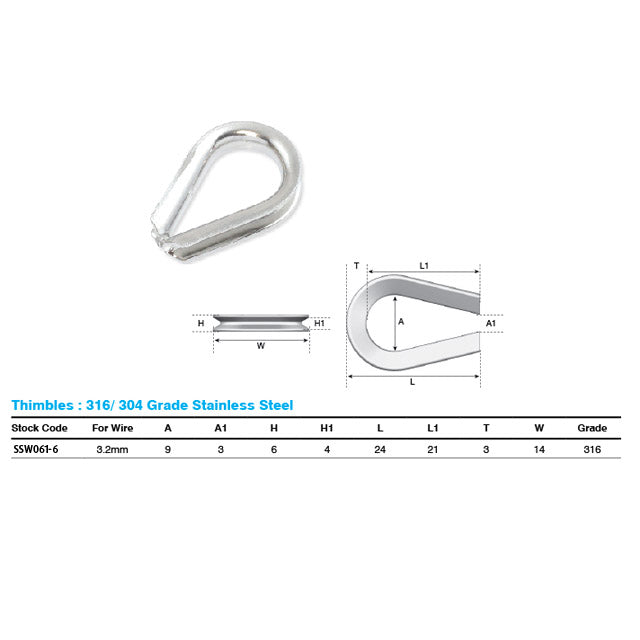

2 x SSW061-6 (Thimble)

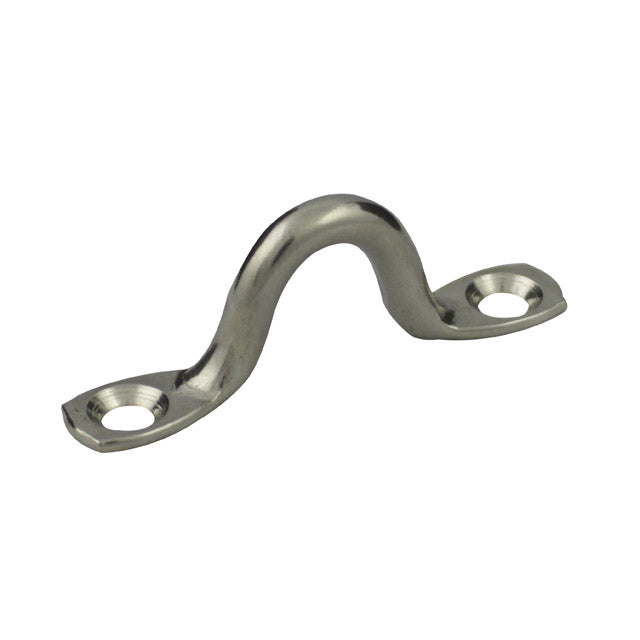

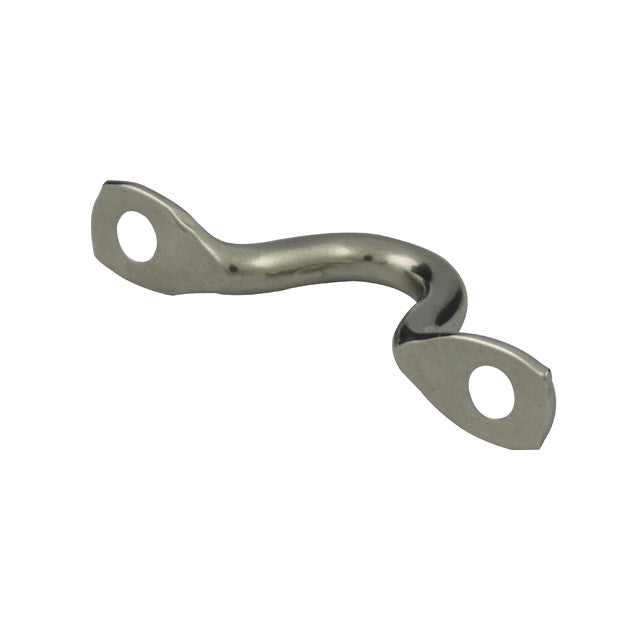

2 x SSW058-6 (Saddle)

What are the fittings made out of ?
316 Stainless Steel, which means they can be used both in external and internal application.

Which wire cable rope is best suited ?

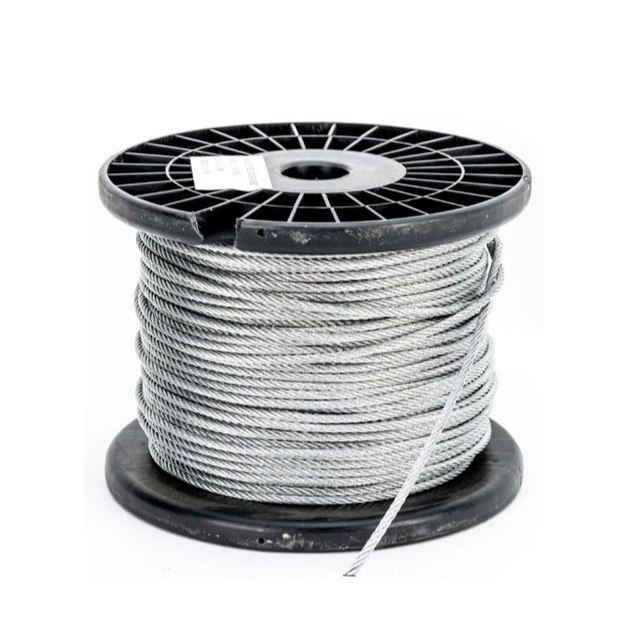

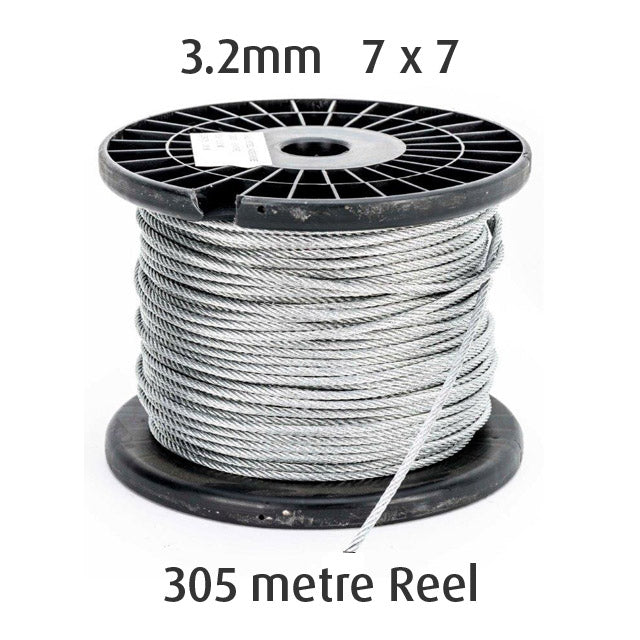

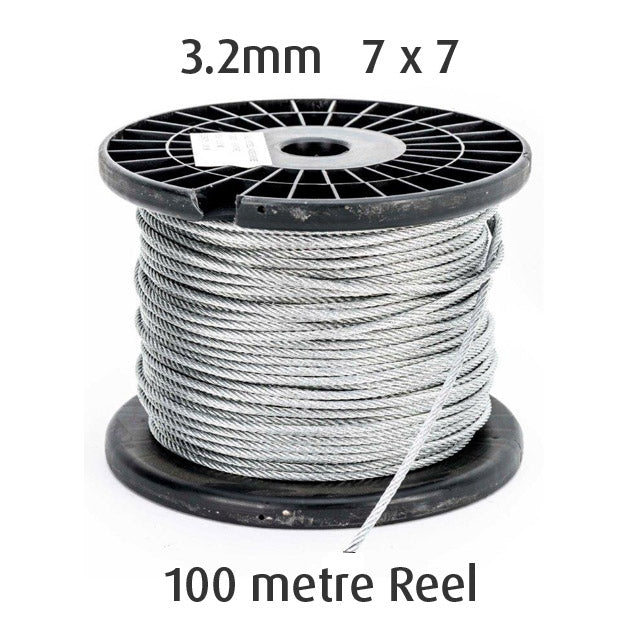

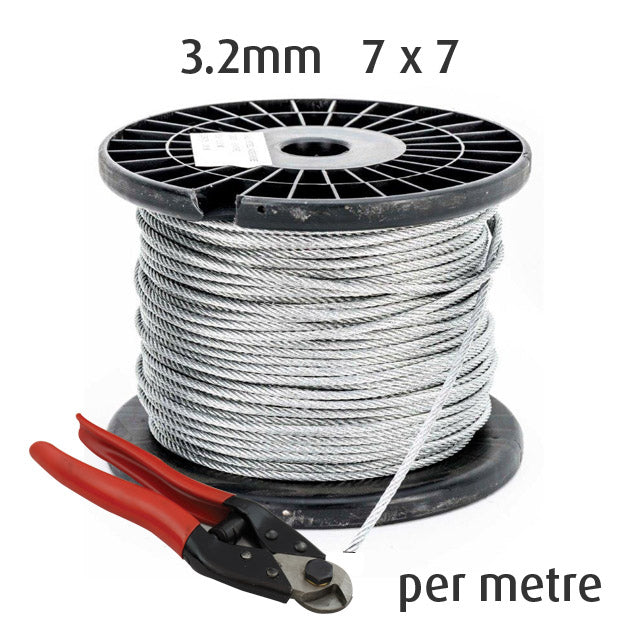

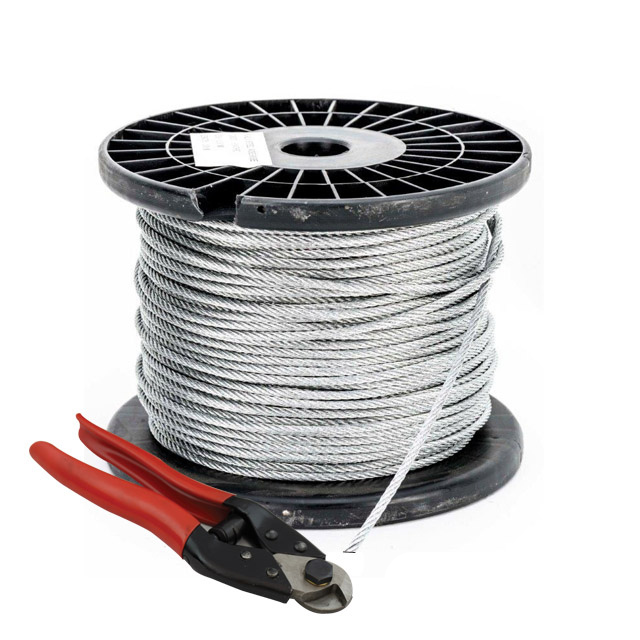

The fittings will work only with 3.2mm stainless wire cable rope.

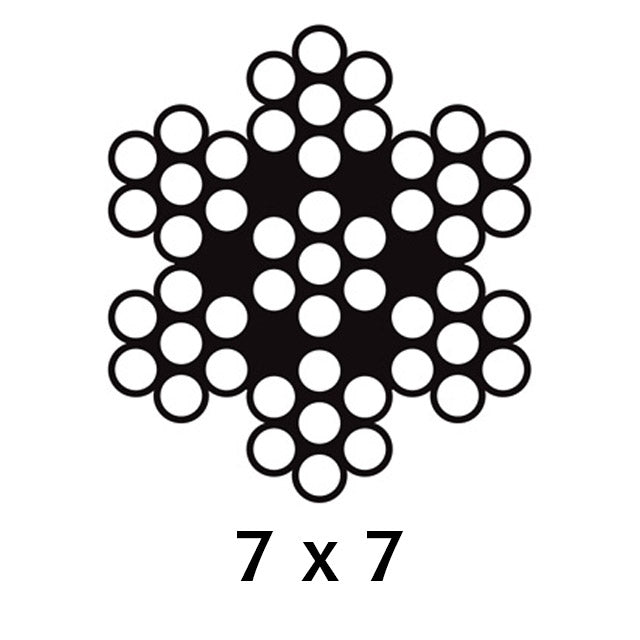

7 x 7 configuration for the cable is the best fit, but 7 x 19 will also work. 1 x 19 can NOT be used with this system.

Which tools do I need ?

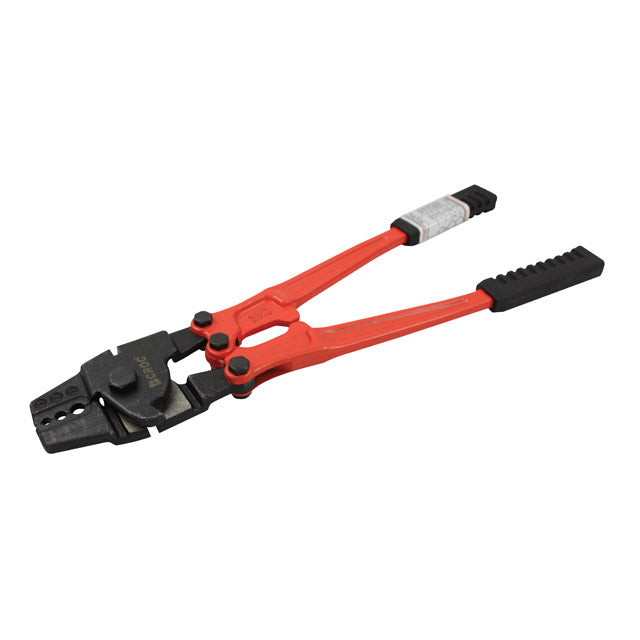

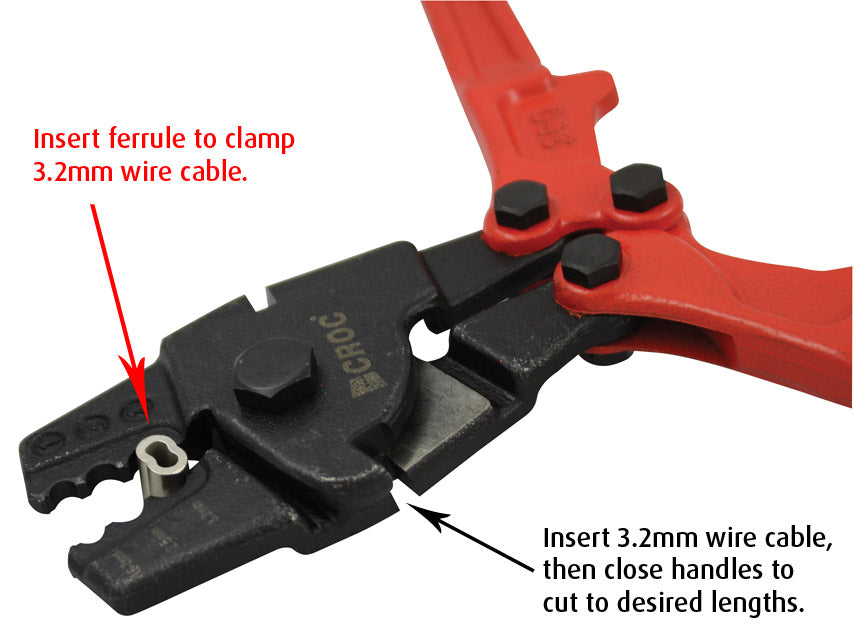

The SSW060-6 (Ferrule) requires the use of the IF134X (Hand Swager) to fasten the fitting to the wire.
The other tool that will be handy to complete the job are IF122X (Wire Cutter), IF133X (Spanner Tensioner) and IF114X (Coach Screw Drive Bit).

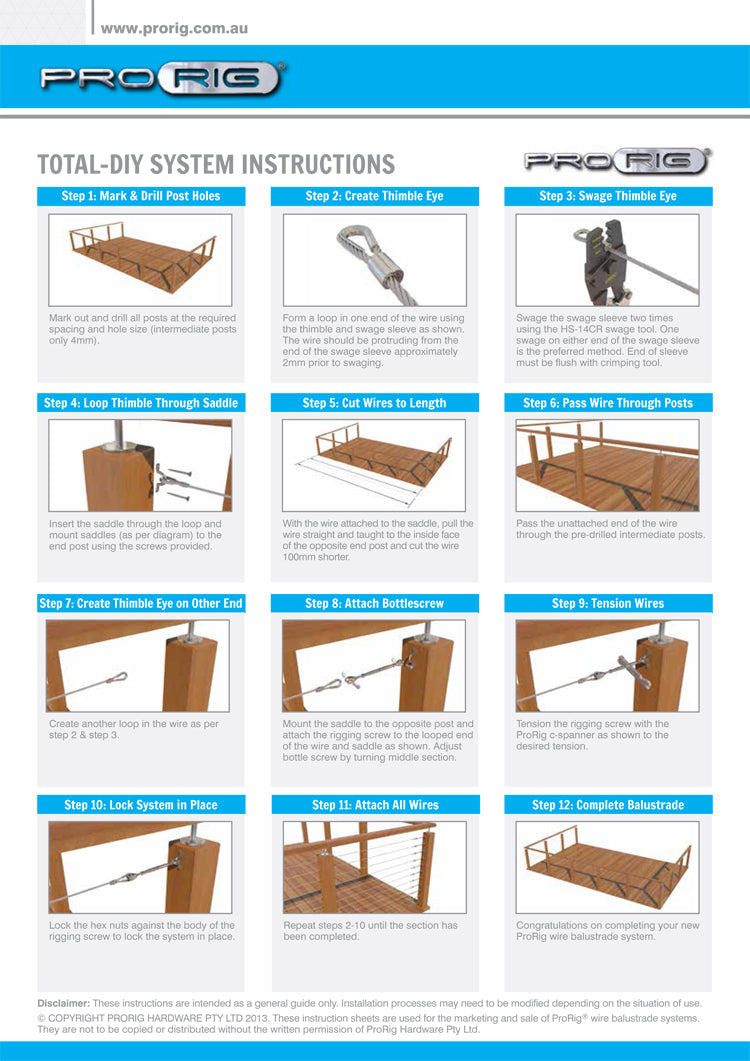

Do you have any instructions on how to install the kit ?
We sure do. Click on this link to download a PDF.
